The GIS viewer: the User’s Manual

How to run the application

To run the GIS viewer, no additional components need to be installed: a standard Internet viewer is sufficient for this purpose.

IMPORTANT! To use all the service functionalities, you must enable pop-ups on this site. Pop-up windows contain additional forms to make queries about the database and answers to these queries.

The viewer is located at:

http://baza.pgi.gov.pl/website/cbdg

CBDG GIS viewer

When the main page is loaded, the map with a default set of layers is shown as presented above. The application uses ‘cookies’, which enables you to load the viewer and see the same set of layers as was displayed during your last visit on the site.

How it functions

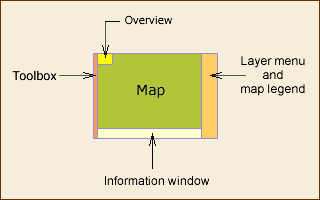

CBDG GIS viewer schema

The map window

The layer menu is displayed on the right, with special buttons Layer information that help you to get information about each layer. At the very bottom of the menu, there is an important note concerning some layers:
Please zoom to the area of your interest to display the objects. The layer contains a substantial number of data and, otherwise, generating the map would take a longer while.

You can display an information layer by ticking the Visible layer field. To get additional information about objects on a given layer, tick the field Active layer to set Layer active. Then, click the ‘Refresh’ buttons (one above the layer menu, the other below the tool menu) to confirm the operation:
Refresh map or Refresh map .

The map will be refresh in the main window

Selecting information layersThe example shows that the Cities layer is both active and visible, the Borders of Poland layer is only visible (not active), while the Provinces layer is not visible. It is not possible to make several layers active at the same time.

When you click the button on the tool menu on the left, the layer menu will be hidden and the displayed legend will illustrate the layers that are currently viewed.

The layer menu and the map legend

The layer menu is displayed on the right, with special buttons Layer information that help you to get information about each layer. At the very bottom of the menu, there is an important note concerning some layers:
Please zoom to the area of your interest to display the objects. The layer contains a substantial number of data and, otherwise, generating the map would take a longer while.

You can display an information layer by ticking the Visible layer field. To get additional information about objects on a given layer, tick the field Active layer to set Layer active. Then, click the ‘Refresh’ buttons (one above the layer menu, the other below the tool menu) to confirm the operation:
Refresh map or Refresh map .

The map will be refresh in the main window

Selecting information layersSelecting information layers.
The example shows that the Cities layer is both active and visible, the Borders of Poland layer is only visible (not active), while the Provinces layer is not visible. It is not possible to make several layers active at the same time.

When you click the button on the tool menu on the left, the layer menu will be hidden and the displayed legend will illustrate the layers that are currently viewed.

How to manipulate the map image

By clicking the appropriate icons, you can:

Toggle Overview Map

turn on or off the overview map that shows you the location of the viewed fragment of Poland

Zoom In

click the ‘Zoom in’ button to activate it and then click on the map to zoom in 50% or drag a box on the map to zoom to the selected area

Zoom Out

click the ‘Zoom out’ button to activate it and then click on the map to zoom out 50% or drag a box on the map to zoom out the selected area

Zoom to Full Extent

zoom the map to full extent

Zoom to Active Layer

zoom the map to the active layer

Back to Last Extent

go back to the previous map extent; another click will take you to the original map you viewed

Pan

drag the map in any direction

Pan to North Pan to South Pan to West Pan to East

drag the map in one of the four directions with more control: 75% of the map will move in the chosen direction

How to form a query

You can use the viewer to form a database query in a number of ways, such as spatial queries defined by means of the mouse in the map window and also typical queries, concerning textual data, sent by means of the ready forms. You are able to get information on the active layer only. Different functions of queries are represented by the following icons on the tool menu:

Identify

the selected object is displayed

Mark Feature

the selected object is displayed and marked with a different colour; when you click the ‘No.’ field, the map will zoom to the selected object

Select by Rectangle

the objects selected by a rectangular box are displayed and marked with a different colour; when you click the ‘No.’ field, the map will zoom to the selected item or, optionally, you can zoom the map to all the records

Select by Line/Polygon

the objects selected by lines or a polygon are displayed and marked with a different colour; when you click the ‘No.’ field, the map will zoom to the selected object or, optionally, you can zoom the map to all the records

Buffer

you will be shown features (with additional data provided) from any layer within the selected area (= buffer) around the previously selected objects on the active layer

Query

the objects are displayed after you fill the form with a query string concerning textual data; the following operators are available: =, >, <, =>, <=, LIKE; for textual data you can enter the % or * symbols together with the operator for so-called ‘wild cards’, for instance NAME LIKE "JANKOWICE%" – as a result, all 73 boreholes that contain ‘Jankowice’ in their names will be displayed; when you click the ‘No.’ field, the map will zoom to the selected object or, optionally, you can zoom the map to all the records

Find

simple search - searches for a string in all the attribute data of active layer

Clear Selection

by using this tool you will clear all your current selections

Data on the found objects are displayed as a table in the information window. Below the table there are links to additional functionalities:

  • Print these records,
  • Zoom to these records - (the map is zoomed to all the records or, when you click the ‘No.’ field, the map is zoomed to the selected record).
Additional functions

By means of the GIS viewer you are able to:

Toggle between Layer Menu and Legend

toggle between the layer menu and the legend

Set map units

set map units used for displaying the scale bar and for measuring distances

Measure distance

measure a distance on the map (also using multi-segment measuring lines)

Print

print the map you are currently viewing, together with the legend and your own title

pomoc

display the CBDG User’s Manual

Add map to basket

order serial maps: SMGP, MHP, MGGP/MGP

Refresh

refresh the view in the map window

How to order maps: SMGP, MHP, MGGP/MGP

The following instructions will help you to order following maps: SMGP, MHP, MGGP/MGP but this only works in a special version of the application available at: http://bazagis.pgi.gov.pl/website/dystrybucja. Choose the appropriate map layer. The layer should be visible and active. The completion and availability status of particular map sheets are marked with different colours.
To mark the chosen map sheets, use one of the selection tools:  Mark Feature Select by Line/Polygon Select by Rectangle . The information window under the map will then display information about the sheets you have marked. After you have selected all the needed maps, finalise the transaction by clicking the Add maps to basket button.

All the selected map sheets will be shown in a new pop-up form. If necessary, you can still delete a map sheet from the list. After clicking the Order button, you will see a new pop-up window with a list of ordered map sheets and their prices. Here, you should indicate what additional documents you would like to order, for example: maps, reports on maps and their digital versions. You are also prompted for your name and address details. Click the Submit button and you will now be shown another pop-up window with your final order, complete with the documents, prices and your personal data. You are still able to modify your order, print it and send it by e-mail to inform us about the order you are going to place.

To add new maps to the basket, first click the Clear Form and Return button.
